Usporedni test Z170 matičnih ploča - ASRock Z170 Extreme4

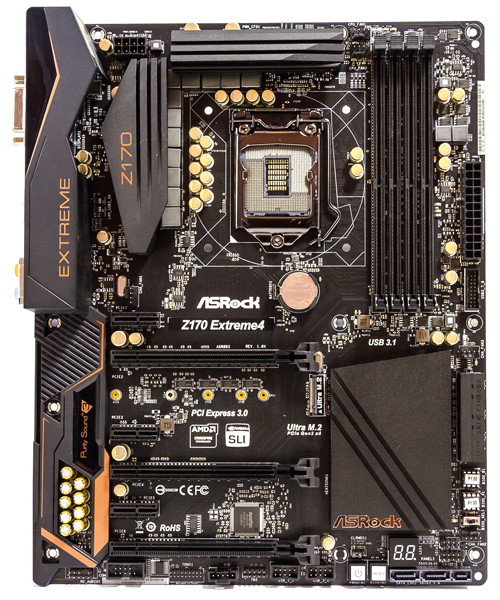

ASRock Z170 Extreme4

Ocjene:

Benchmark performanse - 4,53
Layout i dizajn - 5
Povezivost - 5
Overclocking potencijal - 4
Dodatna oprema - 4
BIOS i dodatne mogućnosti - 5

Grand Prix - 4,61
Best Buy - 4,24

Specifikacije:

Podržana memorija - DDR4 do 64 GB i 3466 MHz (OC) brzine
PCI slotovi na ploči - 3 x PCI-express 3.0 x16, 3 x PCI-express 3.0 x1
Konektori na ploči - 5 x fan headers, 1 x Thunderbolt AIC, 2 x USB 2.0, 1 x USB 3.0, 6 x SATA III, 2 x SATA Express, 1 x M.2 Gen 3 x4
USB 2.0 - 0
USB 3.0 - 6
USB 3.1 - 2 (Type-A + Type-C)
Video izlazi - HDMI, DVI-D, DisplayPort
Form Factor - ATX

Benchmark:

SiSoft Sandra 2015.SP3
Arithmetic Dhrystone / Whetstone - 132 GIPS / 186 GIPS
Multimedia Integer / Float - 412 Mpixel/s / 391 Mpixel/s

Cinebench R15 64-bit
Rendering Single / Multi CPU - 170 cb / 887 cb
x264 HD Benchmark 5.0.1 Pass 1 / 2 32-bit - 77,50 FPS / 20,13 FPS

3DMark 13 Fire Strike Physics Score - 12501
Handbrake 0.10.2 (615 MB 4k .mov to mp4) - 52,27 FPS
POV-Ray v3.7 Benchmark - 1950,56 PPS
WinRAR x64 5.10 MT / ST - 10287 KB/s / 1741 KB/s

Ustupio - "Microline d.o.o., 01 / 279 – 7777, www.microline.hr"
Cijena - 1.399,00 kn
